ZIYOUHU Green Low Light Night Head Mounted Gen 2+ Image Intensifier Tube Night Vision Device Outdoor Tactical Hunting Binoculars

ZIYOUHU Green Low Light Night Head Mounted Gen 2+ Image Intensifier Tube Night Vision Device Outdoor Tactical Hunting Binoculars

DE-OHB-Y / 24mm / 1x
Sale price  $849.00 USD Regular price  $4,699.00 USD
Skip to product information
ZIYOUHU Green Low Light Night Head Mounted Gen 2+ Image Intensifier Tube Night Vision Device Outdoor Tactical Hunting Binoculars

ZIYOUHU Green Low Light Night Head Mounted Gen 2+ Image Intensifier Tube Night Vision Device Outdoor Tactical Hunting Binoculars

Sale price  $849.00 USD Regular price  $4,699.00 USD
Model Number
Objective Lens
Magnification

Specification:

  • Objective Lens: 24mm
  • Effective Distance: 240m
  • Magnification: 1x
  • Diopter: +/-5
  • Battery: CR123 Lithium Battery(not including)

Package include :

Box *1

Gen 2 Night Vision Device *1

Lens *1 ( standard is 1x. Also have the lens of 3x, 5x, 8x , if need others, please contact with us, thank you)

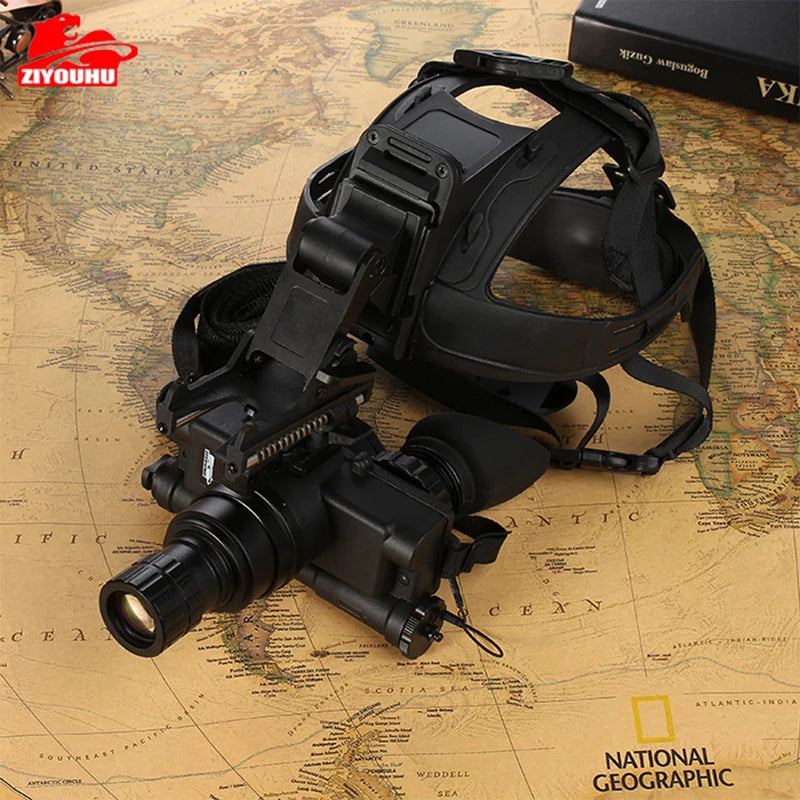

Helmet *1

Helmet Tipper holder *1

Connect Holder *1

  • Magnification :  1x / 3x / 5x / 8x  zoom(magnification lens need customized ,defaut is 1X lens )
  • Resolution ( LP/MM):  more than 72 (US standard HTP FOM 1250)
  • Visual Distance(m) : more than 240
  • Code recognition range :180 meter
  • Field angle (degree) : 40 +/ -2
  • Focusing range (m) : 0.3 – infinity
  • Range of accommodation : -5 , +5
  • Power supply voltage(v): CR123 lithium battery
  • Objective focal length(mm): 27
  • Objective aperture(mm): 24
  • Outlet diameter(mm): 20
  • Exit pupil diameter(mm) : 7
  • Exit pupil distance(mm) 23
  • Working temperature(degree centigrade): -40  to +50
  • Storage temperature(degree centigrade) : -50 to +60
  • Size(mm): 178 x 112 x 62
  • Weight (kg): 0.48
  • Operating time( close infrared) : 60 h
  • Operating time ( Open Infrared) : 40 h

  • HB-Y 5I  is a binocular single tube telescope night vision device.
  • It can handheld or headwear helmet mounted.
  • Image intensifier level : 5I
  • This machine can install 1, 3,  5, 8 times lens. (default is 1X lens, other lens need customized)
  • When the lens is mounted 8 times, it can be connected to the 3 foot frame for remote observation.
  • High power infrared light can be installed.
  • It has the function of AUTO. When the head is in use, it will turn upwards and wear the bracket, and the equipment will shut dowm automatically.
  • Strong light protection and automatic brightness control function.
  • Built in wide-angle infrared light for target search
  • Gen 2+ Image Intensifier Tube Night Vision Device can be for military tactical hunting use

Frequently asked questions

Q: What is the warranty on this thermal imaging monocular?

A: We offer a 12-month warranty covering manufacturing defects. Please contact us if you experience any issues.

Q: Does it work both day and night?

A:Yes, it works in complete darkness, low light, and daytime conditions. Thermal imaging detects heat signatures, not light.

Q: How far can it detect heat signatures?

A:Detection range varies with conditions, but typically up to 1,200–1,500 meters for large targets.

Q: Can I use it as a clip-on with my existing rifle scope?

A:Yes, it’s designed to be mounted as a clip-on thermal device, or you can use it as a standalone monocular.

Q: What devices can I connect via WiFi?

A:It supports WiFi connection to smartphones and tablets (iOS & Android) for live view and video recording.

Q: Is it waterproof and shockproof?

A:Yes, it’s built to be shockproof and weather-resistant, suitable for tough outdoor environments.

Q: How long does the battery last?

A:The built-in rechargeable battery provides up to 6 hours of continuous use. You can also use an external power bank for longer sessions.

Q: Does it ship to the United States?

A:Yes, we ship directly to the U.S. via reliable couriers. Delivery usually takes 7–15 business days.

Q: Can I return or exchange the product if I’m not satisfied?

A:Yes, we offer a 30-day return policy. The item must be in its original condition with all accessories. Please contact us to initiate a return.
